Comprehensive Range of NABLA Elastic Rail Clips Manufactured by GNEE Rail

Name: Comprehensive Range of NABLA Elastic Rail Clips Manufactured by GNEE Rail
Brand: GNEE
Price: 1 USD

Comprehensive Range of NABLA Elastic Rail Clips Manufactured by GNEE Rail Manufactures

Brand Name : GNEE

Model Number : Nabla Elastic Rail Clips

Certification : ISO9001

Place of Origin : China

MOQ : 1 Tons

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 tons per month

Delivery Time : 30 days

Packaging Details : Gunny bags or cartons and wooden pallet

Type : Nabla Elastic Rail Clips

Brand : GNEE rail

Material : 60Si2MnA, 60Si2CrA

Size : 4mm or 4.5mm thick

Note : 42-47HRC 3 million times without breaking; Application for different rail type

Contact Now

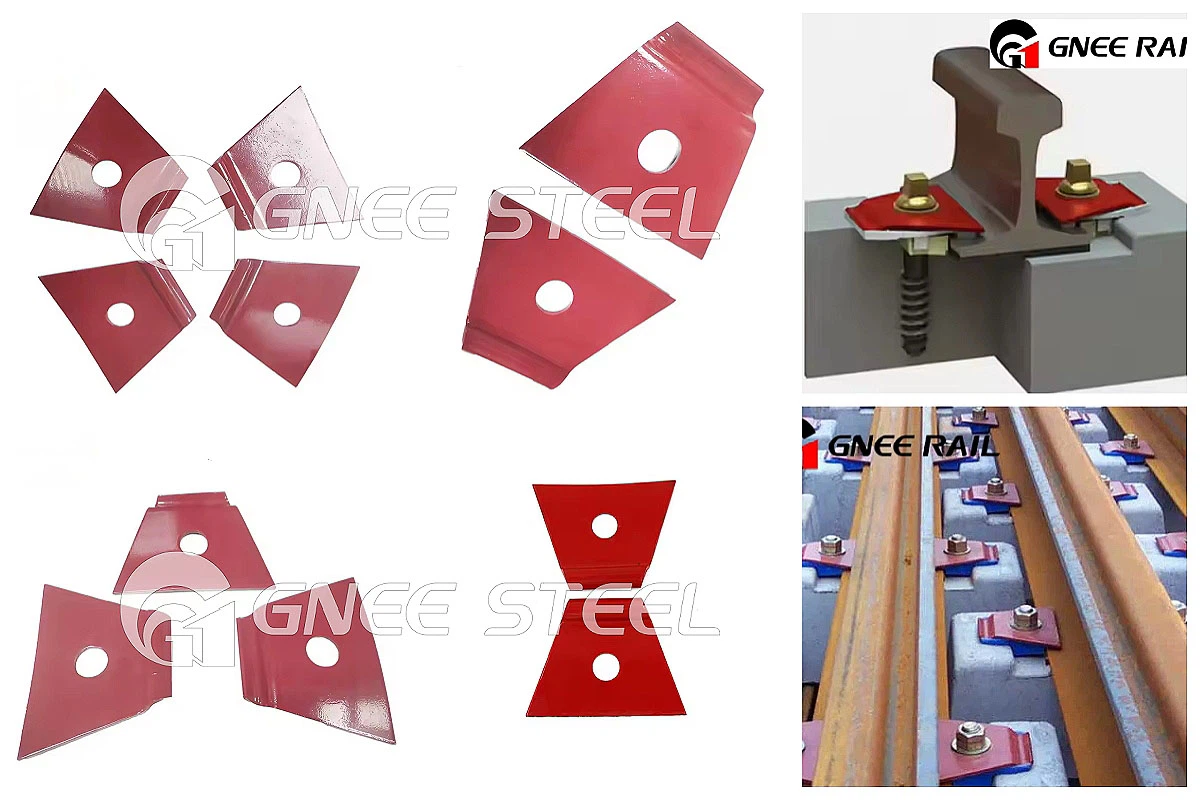

Nabla Elastic Rail Clips

The NABLA rail clip is specifically designed to support the NABLA fastening system, which is a popular choice for tram tracks throughout Europe. It is suitable for use on both ballasted and concrete sleeper tracks, delivering excellent performance on tight-radius curves. The clip ensures superior electrical insulation, effective lateral force absorption, and exceptional durability, thanks to its glass fiber-reinforced gauge blocks. GNEE Rail manufactures a comprehensive range of rail fasteners, including rail clips, joints, screws, anchor bolts, clamp plates, fishplates, and fishplate bolts, meeting global standards such as GB/TB, AREA, UIC, BS, DIN, ASTM, and AS. Contact us for further details.

Comprehensive Range of NABLA Elastic Rail Clips Manufactured by GNEE Rail

Nabla Clips Fastening system specification

	Nabla clip	Insulator	Screw spike	Spring washer
Pieces required	2	2	2	2
Material	60Si2MnA, 60Si2CrA	Reinforced Nylon 66 (PA66)	Grade5.6:35#	ML08AI
Size	4mm or 4.5mm thick		UIC54,UIC60,50kg rail,60kg rail	18.25x34x78mm
Note	42-47HRC 3 million times without breaking; Application for different rail type	Density:1.3-1.45g/cm3 Tensile strength:≥170Mpa Elongation:≤4.4% Bending Strength:≥250Mpa Impact Strength(No gap):≥80KJ/m2 Melting point:250-270℃ Insultion resistance:≥1X108Ω Glass fiber content:30-35% Hardness:≥110HRR	Tensile strength:≥500Mpa Yield strength:≥300Mpa Elongation:≥20% Cold bending:90 degree without crack	Chemical composition(%): C:0.05-0.10, Mn:0.30-0.60, Si:≤0.1, Cr:≤0.2, P:≤0.035, S:≤0.035

Rail Nabla Clip technical parameters

Series	Model	Spec.	Hardness
E rail clip	III type rail clip	ø18	44-48HRC
	E1609 rail clip	ø16
	E1809 rail clip	ø20
	E1804 rail clip	ø18
	E1806 rail clip	ø18
	E1813 rail clip	ø18
	E2001 rail clip	ø20
	E2007 rail clip	ø20
	E2009 rail clip	ø20
	E2039 rail clip	ø20
	E2055 rail clip	ø20
	E2056 rail clip	ø20
	E2063 Rail Clip	ø20
	E2091 Rail Clip	ø20
PR rail clip	PR85 Rail Clip	ø13
	PR309A Rail Clip	ø19
	PR401 Rail Clip	ø20
	PR415 Rail Clip	ø20
	PR601A Rail Clip	ø22
Vossloh clip& Forged rail clip	SKL 1 Rail Clip	ø13	42-47HRC
	SKL 3 Rail Clip	ø13
	SKL 12 Rail Clip	ø13
	SKL 14 Rail Clip	ø14
Special rail clip	Special rail clip	ø13
Russia rail clip	Russia rail clip	ø18
Deenik clip	Deenik clip	ø25
Anti-vandal clip	Anti-vandal clip	ø18
Fast clip	Fast clip	ø15
GL1419	GL1419	ø14
Nabla Spring blade	Nabla Spring blade
KPO/rail clamp	KPO/rail clamp
RAIL CLIP GANTREX	RAIL CLIP GANTREX
We can also produce customized rail clips according to your drawings or samples.

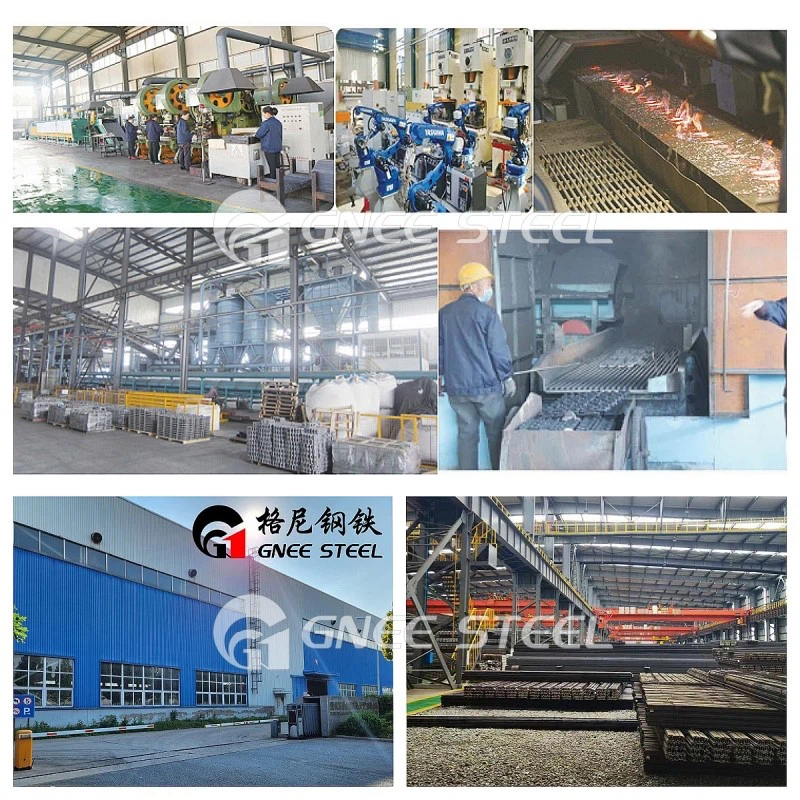

GNEE rail clip workshop
