AREMA Standard Fishplate Factory-GNEE
Hot AREMA Standard Fishplate from GNEE:
| Standard | Type | Length/Diameter | Weight /Material |
| AREMA 2018 | 115RE | 4 hole-24" | 17.04Kg | 45# chemical |
| 115RE | 6 hole-36" | 25.56Kg | composition(%): |
| 132-136RE | 4 hole-24" | 17.75Kg | C: 0.42-0.50 |
| 132-136RE | 6 hole-36" | 26.63Kg | Mn: 0.50-0.80 |
Joint Bar for AREMA 2018 Standard Steel Rail
| Steel Rail Type | Steel Rail Weight (KG/M) | Fishplate Standard | Fishplate Material |
| 100RE(TR50) | 50.35 | AREMA 2007 | 45#,55#, AREMA Grade Steel |
| 115RE | 56.9 |
| 115-119RE |
| 132RE | 65.31 |
| 133RE | 66.1 |
| 136RE | 67.41 |
| 132-136RE |
Rail fish plates are an important part of railway tracks and are used to connect two rails to ensure safety and stability when trains are running. Typically made from four- or six-hole flat steel, they are a key component of railway fastening systems.
When encountering high temperature weather, rails will expand or become longer, and rail joints can provide expansion space to maintain the stability and smoothness of the track. On the other hand, rail joints are generally installed near road intersections, which provides great convenience for railway repair personnel to easily remove rail debris.
GNEE is a company specializing in the production of railway fasteners, joint systems and rails, with more than 15 years of experience in providing high-quality products and services to the railway industry. These products include various types of fasteners, joints and rails to meet the needs of different railway projects.
The rail joint workshop is a place dedicated to the production of rail joints. It has a series of production equipment and technological processes to ensure that the quality and performance of rail joints meet the requirements. The company has its own rail joint workshop, rail joint workshop, casting workshop, and two production lines of Φ450 and Φ300 rail joint rolling lines. In addition, the production also has 14 types of rail joint production equipment such as preheating, heat treatment furnaces, straighteners, cutting machines, hacksaws, drilling machines, chamfering, articulation, punching equipment, oil storage tanks, and thermometers.
The quality inspection center is an important link in ensuring the quality of rail joints. We have a strict quality inspection center with a complete set of testing facilities such as German direct reading spectrometer, metallographic image automatic analyzer, fully automatic impact testing machine, magnetic detector, fatigue testing machine, etc. These testing equipment can be used to detect various indicators such as the chemical composition, metallographic structure, impact toughness, magnetic properties and fatigue properties of rail joints. Inspection from selection of raw materials to quality inspection of finished products. Through these tests, it can be ensured that each product meets the requirements of relevant standards and has been tested by the inspection agency before being shipped to any customer.
Packing Methods of AREMA Rail Fish Plates
1. We can use iron tray packing rail fish plates
This method is to place the iron tray ender the rail fish plate. The iron bars were fixed around, and the iron bars passed through the hollow iron tray.
2. Use wooden box to wrap rail fish plates
This method also needs to bundle the rail fishplates with a steel band. After placing them in the wooden box, reinforcing the steel band outside the box. This method is suitable for more bumpy transportation, but the cost is relatively.
Product Tags:
|
|

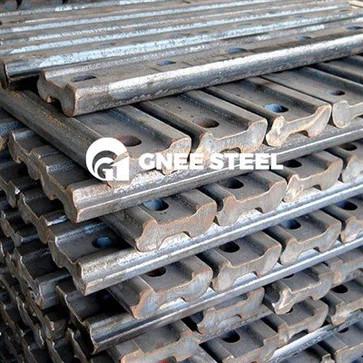

AREMA Standard Fishplates For Expansion And Maintenance Of Railway Tracks Images
|
