American Standard Fishplate Supplier-GNEE
| Standard(according to countries) | Size |
| AREMA standard (USA) | 115RE, 119RE, 132/136RE, 141RE, 100-8, 122CB |

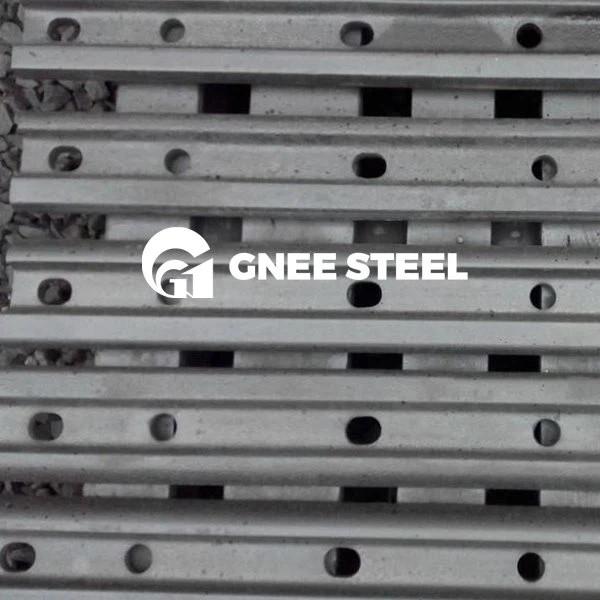

115-119RE, 132-136RE American standard fishplate
• Standard: according to AREMA2010
• Length: 6 hole 36 inch or 4hole 24inch with round or oval holes according to the customers of requirements
• Material: medium carbon steel or micro alloy steel
• Holes of punching or drilling available.

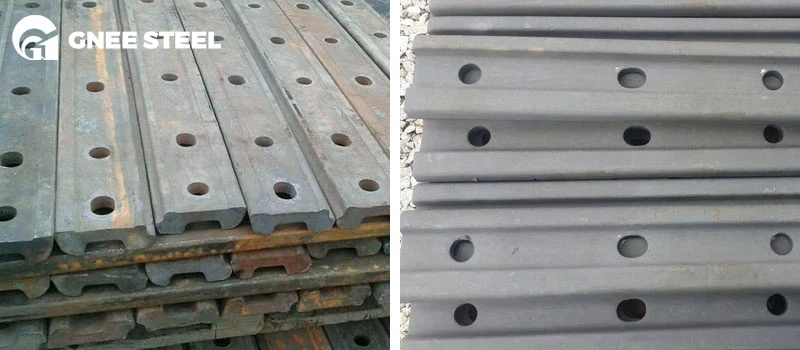

133RE Arema standard Rail Joints
• According to AREMA 2010
• Material: middle carbon steel 45# or 50# or 55# steel
• 6 hole 36 ″ or 4 hole 24 ″ available
• Holes of Fish plate can be punched or drilled, of round or oval shape, without sharp edges.

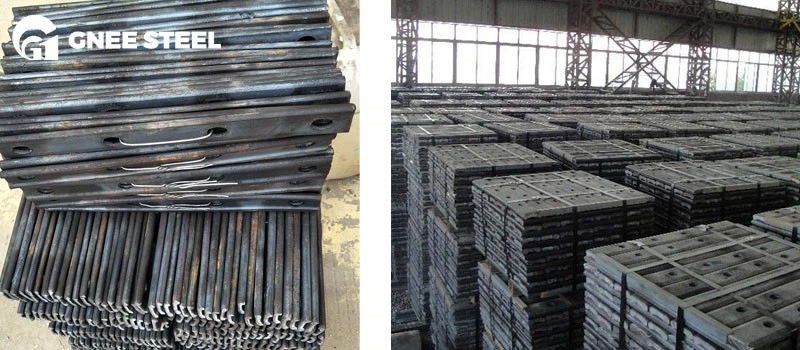

AREMA rail fishplates are available in two packaging methods
1. Use iron pallets to pack guide rail fish plates
In this method, the iron pallet is placed at the end of the rail fishplate, the iron bar is passed through the hollow iron pallet, and the pallet and the fishplate are fixed together with iron bars around it.
This method is suitable for relatively smooth transportation conditions, is more economical, and does not require a large number of wooden boxes and lumber.
2. Wrap railway fishplates in wooden boxes
This method is to bundle the rail fishplates with steel straps, then place the bundled rail fishplates into a wooden box, and use steel straps outside the box to reinforce them. This method is suitable for bumpy transportation. The wooden box can better protect the fishplate from vibration or impact.
Whichever packaging method is chosen usually depends on the actual road conditions and cost budget. But no matter which packaging method, we have enough experience to ensure that the fish plate remains intact during transportation.
