High Performance Rail Fish Plates For Smooth Railway Operations

  • 1
  • 2
  • 3

Brand Name : GNEE

Model Number : Rail Fish Plates

Certification : ISO9001

Place of Origin : China

MOQ : 1 Tons

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 tons per month

Delivery Time : 30 days

Type : Rail Fish Plates

Brand : GNEE rail

Material : 45#,55#, AREMA Grade Steel

Standard : GB, AREMA, BS, UIC, AS

Customization : Available

Finish : According to Customer Needs

Contact Now

Rail Fish Plates Factory-GNEE

GNEE can provide different rail joints such as GB, AREMA, BS, UIC, AS, African standard, South American standard, etc., as well as four holes and six holes, such as standard fish plates, high-strength fishplates, compromise fishplates, frozen fishplates, insulating fish plates, bonded fishplates, insulating bonded fishplate, joggled fishplate. The maximum production output is 120 t/day. Rail joint products are exported to more than 100 countries and regions, providing more than 50 standard and non-standard models of rail joints to customers around the world.

International standards of railway fish plates

UIC standard railway fish plate
Chemical Composition
• C: 0.37~0.44
• Mn: 0.50~0.80
• Si: 0.17~0.37
• S: ≤0.035
• P: ≤0.035

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
UIC864-4& UIC864-8 Chinese steel grade 40# U79–UIC54, U85–UIC60 550-650Mpa N/A ≥18% N/A N/A N/A

DIN standard railway fish plate

Chemical Composition
• C: 0.14~0.22, 0.52~0.60
• Mn: 0.30~0.65, 0.50~0.80
• Si: ≤0.30, 0.17~0.37
• S: ≤0.050, ≤0.035
• P: ≤0.045, ≤0.035

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
DIN5902-1995 Chinese steel grade Q235/Chinese steel grade Q295 S30 for FL30 rail, S33 for FL33 rail, S41 for FL41 rail, S49 for FL49 rail, FL10, FL14, FL18, FL20, FL41-54 ≥ 375 Mpa ≥ 235 Mpa ≥ 21% N/A N/A N/A

Chinese standard railway fish plate

Chemical Comoposition
• C: 0.52~0.60
• Mn: 0.50~0.80
• Si: 0.17~0.37
• S: ≤0.035
• P: ≤0.035

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
TB/T2345-2008 Chinese steel grade 55# 43, 52, 60, 75 ≥ 785Mpa ≥ 520Mpa ≥ 9% ≥ 20% HBW 227-388 30 degree, no crack

BS standard railway fish plate
Chemical Comoposition
• C: 0.27~0.84
• Mn: ≤0.94
• Si: 0.38
• S: ≤0.058
• P: ≤0.058

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
BS47-1 Chinese steel grade 40# BS75R, BS80A, BS90A, BS100A, BS113A 550-650Mpa N/A ≥ 18% N/A N/A N/A

South American standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
According to Customer's requirements Chinese steel grade 50# or customized TJ57, TJ ASCE90, TJ UIC60(Brazilian) 75LBS A.S.C.E, 75LBS BSS, 80LBS A.S.C.E, TJ BS80A(Peruvian) N/A N/A N/A N/A N/A N/A

African standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
According to Customer's requirements Chinese steel grade 50# 85LB, 85LB-80LB N/A N/A N/A N/A N/A N/A

AREMA standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
AREMA 2007 Chinese steel grade 50# 115RE, 119RE, 132RE, 136RE, 141RE... N/A N/A N/A N/A N/A N/A

Advantages of GNEE track joints:

It has been the railway fishplate supplier for major railway projects in the United States for many consecutive years.

As a one-stop railway service provider, it has more than 80% market share in China's railway industry.

We can provide semi-finished rail joints without holes or finished rail joints with holes. Round or oval holes also available

Both 4-hole 24-inch and 6-hole 36-inch rail fish plates are available.

We have a professional rail fish plates production and technology R&D team with 123 employees, 22 technicians, and 5 senior engineers, with 16 years of experience in rail joint development and manufacturing.

Over 100 types of molds are prepared, including molds for thermite welded joints.

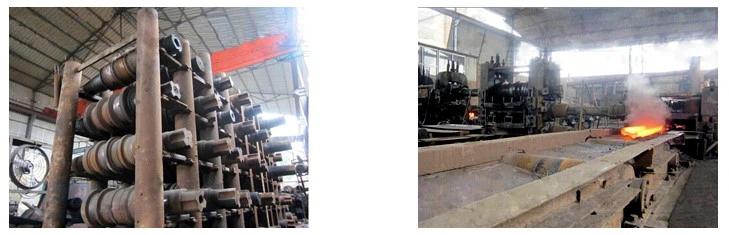

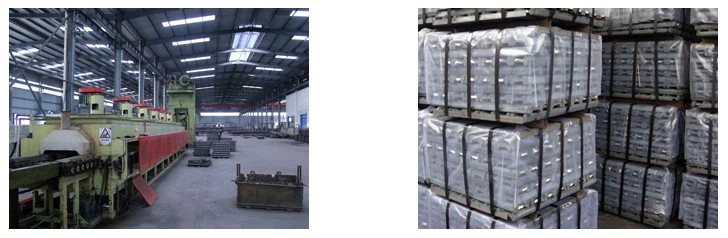

Rail Joint Workshop

High Performance Rail Fish Plates For Smooth Railway Operations

High Performance Rail Fish Plates For Smooth Railway Operations

High Performance Rail Fish Plates For Smooth Railway Operations
